Stýring frá Systemair
Gerð: CE Villavent/3
Easy to operate
Discreet lamp indicators
Alarm menu
Free choice between connection via modular plugs or terminal block
Can be installed flush in wall box or on the wall
The automatic control functions are mounted inside all Systemair-models. On the wall models the control panel is integrated in the front.
Separate control panel, type CE, is supplied in connection with the traditional E-models and also for remote control of all wall models with integrated control panel.

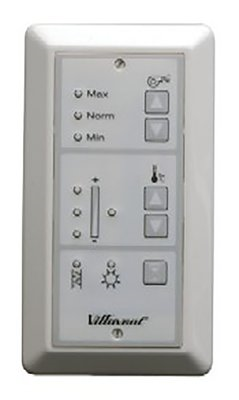

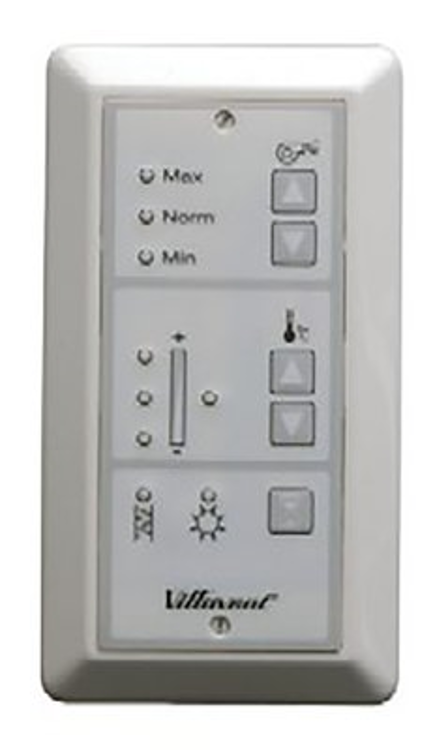

All models can be operated from one or more remote CE control panels. The CE control panel is elegant, functional and easy to operate, with handy buttons for choice of airflow and supply air temperature.
Discreet lamp indicators show chosen settings, re-heater battery or defrosting in operation and that filters need to be changed.
On units with automatic change between normal operation with heat recovery and summer operation without heat recovery, lamp signal will indicate summer operation.
Commissioning of airflow on normal ventilation, choice of service intervals between filter changes and override of separate timer, if installed, can also be made from the control panel. Alarm menu will show possible operation malfunctions.
The control panel, type CE, can be installed flush in wall box or on the wall, CEF. When installed on the wall, the panel will only build 20 mm from the wall.
For 12V signal between control panel and unit, complete cable (6,0 or 12,0 m) with modular/tele plugs is available, or alternatively 4-leads for connection between terminal blocks on the control panel and in junction box inside the unit.
Twin plugs are available for connection of more than one remote control panel.
