Dreifari frá Systemair
Gerð: TFF-200-SW
Þvermál: 200 mm

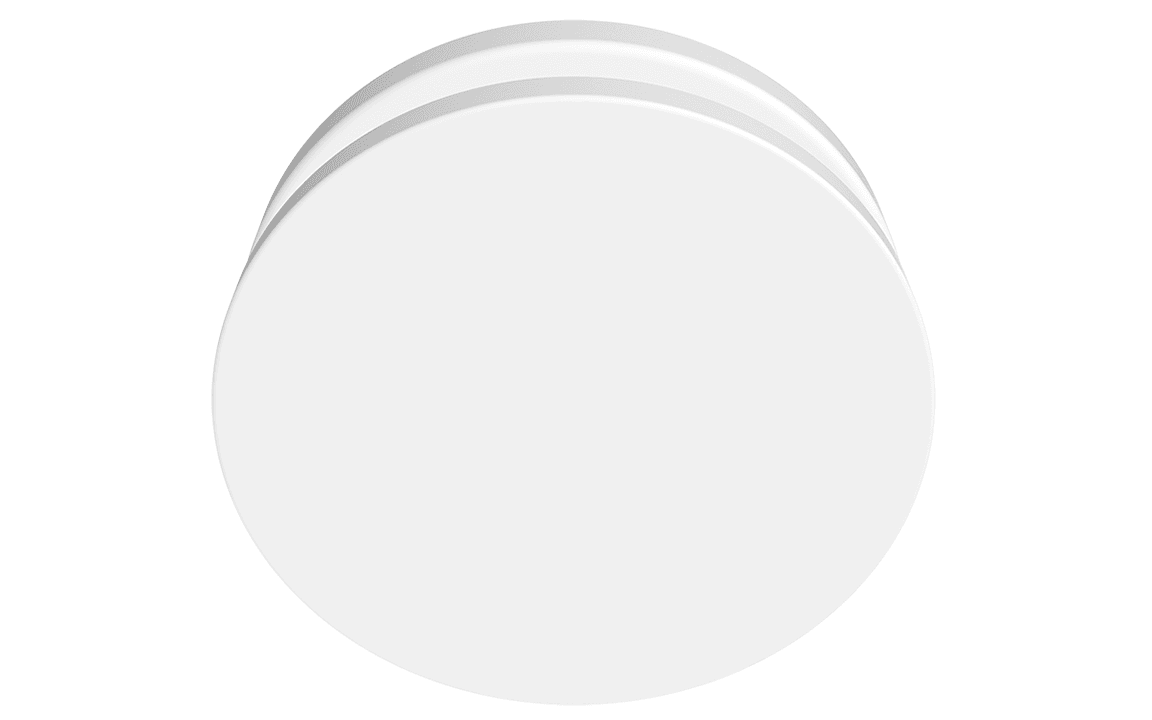

TFF is an air valve. The product is mainly intended for air supply and can be used for air extract. The product is installed onto ducts in ceilings or walls. The front panel can be adjusted to regulate vent capacity. The product has a 360° discharge pattern from which up to 180° can be shielded by a deflector. The field of application is offices, hotels, residential rooms etc.
Highlights
• Easy, precise air flow volume adjustment
• Non-disturbant aesthetic form
• Easy installation
Accessory
• RF-BOR-C (not available for all valve sizes)
Design
TFF is manufactured from galvanized steel sheet. The product consists of a valve housing, duct connection with fixing springs and the adjustable front panel. The front panel is held by the central thread bolt and can be moved by rotating. The gap between the plate and the seat can be adjusted to set the required air flow volume. The product is powder painted to RAL9003 (signal white) as standard. Other RAL colours are available upon request
